Magnetic Card Reader: Intelligent Light and Buzzer Built-in, RS232

Magnetic Card Reader

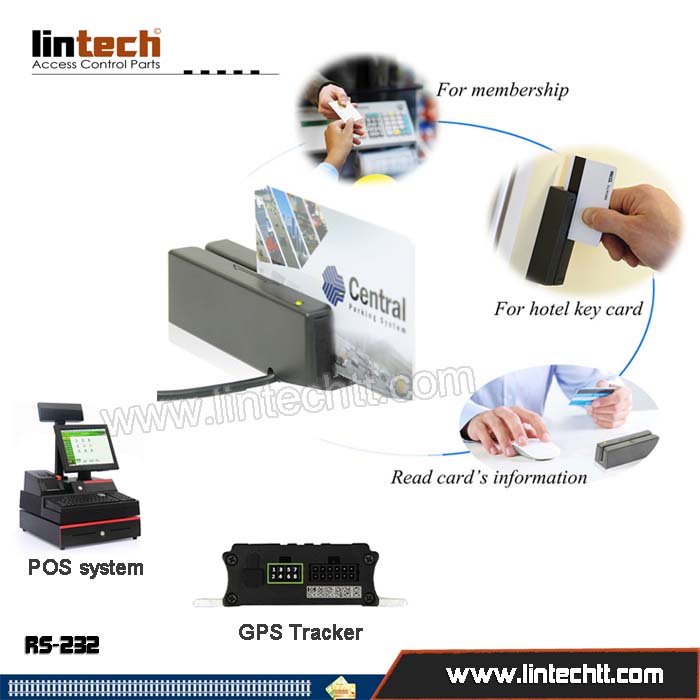

Lintech LS-M80-C01 magnetic card reader is hand swipe operated magnetic card reading machine with RS232 interface and Buzzer built-in. It has intelligent lights to alert if card data is read correctly.




  1.  2 color LED & Buzzer indicator can controllable by upper PC/server command. (basic on order number)
  2.  ISO7811,12,13, AMMVA
  3.  Bi-direction card reading, high capacity program design, high card reading ability.
  4.  Feel free to choose to enter key between data of each track.
  5.  Can customize tract starting character.
  6.  Magnetic head contacts well with cards and ensures cards to have the least abrasion.
  7.  Adopting arm suspension type magnetic head assembly method enables machine with soft elasticity and good hand feel.
  8.  Elasticity will not change in 10,000,000 times, which greatly increases the life span of the magnetic head.
  9.  Installing magnetic head in the magnetic head box makes track position of magnetic head more precise to ensure success card reading rate, and the appearance of the product looks more beautiful.
  10.  Specific integrated circuits guarantee AMP 15% of the card can work properly. Dual-track static current of the whole machine is below 4mA/5V.
  11.  Strong interference resistance.
  12.  Precise electric circuit disposition can read high magnetic card at 4000Oe completely. Magnetic head adopts platinum manganese alloy material, which makes it life span over 800,000 times


Model No.: LX-Mx0-Cnn


**Model Number Rules**

X=U=USB Interface
X=S=RS232 Interface
X=K=PS2 Interface
x=1=Read first track only
x=2=Read Second track only
x=3=Read Third track only
x=5=Read first and second track only
x=6=Read second and third track only
x=8=Read all track(1,2,3 tracks
Cnn=C00=Basic (5VDC Without dual color LED without buzzer)
Cnn=C01=Buzzer/Dual color LED
Cnn=C10=Basic 6.5-30VDC
Cnn=C11=6.5-30VDC, buzzer/led

Example: LS-M80-C01 means RS232 interface and read all three tracks with dual color LED and with buzzer.


Also check our:




  • POS terminal
  • ID verification/Authentication
  • Member management system
  • Inquiry system
  • GPS Tracker

More Photos:

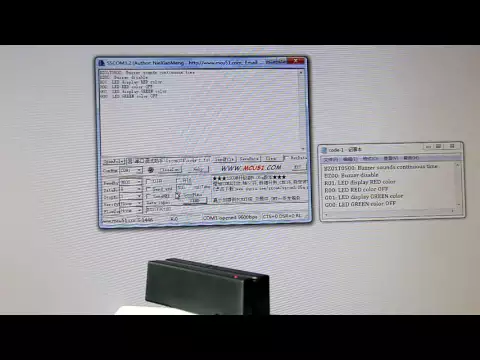

Video of MSR Testing:
