RFID/IC Card Dispenser: Motorized, F3

F3 Card dispenser collector with RFID/IC card reader writer



Model No.: F3



INTRODUCE:



F3 card dispenser is an issuing machine that operate with card size based on ISO/IEC 7810 Identification cards: ID-1 size, operate thinckness from 0.2mm to 1.2mm. From history production experience, plus good idea and innovation design accumulated, this dispenser now equips reliable mechanism to make card issued smoothly and last for long life time.

F3 card dispenser can be integrated with ISO14443A RFID reader module that can read and write cards in such standard, typical card as S50, S70, FM11RF08, NTAG203/210/212/213.

Also, Can be integrated with ISO7816 contact IC card read and write module, operate with those card with contact interface such as SLE4442, 4428, SAM card, SIM card etc…

Or, if necessary, above 2 module integrated together also available, then it support both contactless and contacted cards.



FEATURES:



  1.  Dispense Mifare Card 13.56MHz card with read and write module or Contact IC card read/write module
  2.  Unique transfer wheel design for Accurate issuing any card even for concavo-convex character number card
  3.  Simple, convenient, stable and accurate adjusting kinds of different thickness for issuing different cards
  4.  Compact size design to save the installation space
  5.  Reclaim card tank design in rear of machine for easy management
  6.  Couple of sensor can detect reclaim card tank is full, card tank empty alarm, card position detect etc, can easy distinguish card position and status.
  7.  High strength and durable engineer plastic card channel make sure RF card read/write steady
  8.  Industry conceiving, surface dealing with roast paint, well bearable cubing and rotting. Be suitable to all kinds of bad environment, such as high, low, and mush dust, etc.
  9.  Multi- sensor protect function prevent outer light interference to sensor
  10.  24V/2.5A
  11.  RS-232



Also check our:



APPLICATIONS



  • Parking lot card issuing system
  • Self-Service Machines
  • Automatic ticketing machines

Photos:

Detail instructions:

RFID-card-dispenser-size

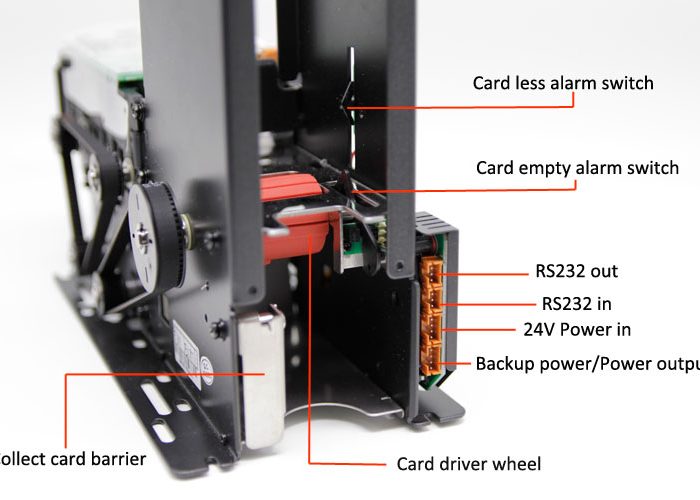

Details

Read/Write Module

Type: Photo show 2 in 1 function board
Lightspot: Support multi-machine working, use one COM
Support Cards: ISO14443A/ISO7816
This board is 2 in one function that can read/write RFID card and SAM/IC card. When with single function, those on board electronics components may different.

Card Thickness Adjust Gate



Level: 0.2mm to 1.2mm

Default : original set at 0.8mm

Cover range: suit for 0.7-0.9mm thickness cards
This gate set for preventing double card was drived into transfer channel, to keed issuing card accuracy and steady.

Main Drive Wheel

Material: Customized Rubber
Structure: Special design for enhance friction
Feature: more contact surface with card.

Collect Card Stacker

Capacity: 25pcs
Fill full alarm: YES

Extension Stacker Dimension:

Different spec appearance:

Different function appearance compare(mainly in 5 point defferent):

With same model F3 card dispenser, there are 3 optional specification. as:
1. With ISO14443A RFID reader module that can read and write cards in such standard, typical card as S50, S70, FM11RF08, NTAG203/210/212/213.

2. With ISO7816 contact IC card read and write module, operate with those card with contact interface such as SLE4442, 4428, SAM card, SIM card etc…

3. Above 2 functions in 1 combine.

Here are 3 different specification card dispenser:

F3 Order Code:

Videos:

Power Supply/Data Cable/Extend Stacker Videos:

Certificate and Test report:
