CAN Communication Baud Rates: Advantages & Disadvantages for Data Transmission

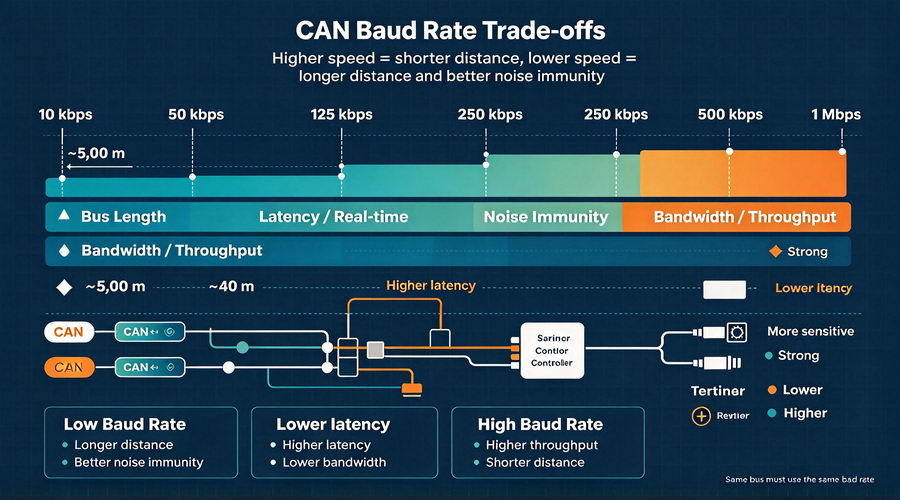

The baud rate of a CAN bus is expressed in bps (bits per second). It determines how many bits are transmitted every second. Because CAN uses differential signaling, the baud rate directly drives several key trade-offs — the maximum bus length, noise immunity, latency, and overall bandwidth. In short: the higher the baud rate, the faster the transmission, but the shorter the maximum allowable bus length.



The Core Trade-off in One Sentence



A high baud rate gives you speed and low latency, but shortens the communication distance and makes the network sensitive to wiring quality and interference. A low baud rate is slower and adds latency, but supports much longer cable runs, offers stronger noise immunity, and is more fault-tolerant overall.

⚠️ Important: All nodes on the same CAN network must use the same baud rate. You cannot mix one node at 250 kbps and another at 500 kbps — mismatched bit timing causes bit errors and the bus simply cannot communicate. Different baud rates can only be bridged through a CAN gateway.





Common CAN Baud Rates Compared (Classic CAN 2.0A/B)



Baud Rate Max Bus Length (reference, twisted pair) Advantages Disadvantages Typical Use Cases
10 kbps ~5,000 m Longest reach, excellent noise immunity, ideal for harsh environments Very slow, poor real-time response, data backlog under heavy load Long-distance sensors, underground equipment
50 kbps ~2,000 m Long distance, good noise immunity Slow transmission, low refresh rate Construction machinery, large container equipment
125 kbps ~1,000 m Long distance, high wiring tolerance Moderate bandwidth, not ideal for high-frequency messages Building automation, small industrial control
250 kbps ~500 m Good balance of distance and speed, solid noise immunity Medium bandwidth Buses, construction machinery, some industrial control
500 kbps ~250 m Most common in automotive; best balance of speed and distance Higher wiring requirements, long runs prone to errors Vehicle body CAN, in-car radar, controllers
1 Mbps ~40 m Fastest, lowest message latency, high throughput Very short reach; extremely sensitive to cabling, termination resistors, and EMI — poor wiring causes dropped frames In-chassis short-range control, motor controllers



The maximum lengths above are reference values for typical twisted-pair cabling, proper termination resistors, and low-interference environments. In the field with strong electromagnetic interference (variable-frequency drives, large motors), the practical usable distance shrinks further.

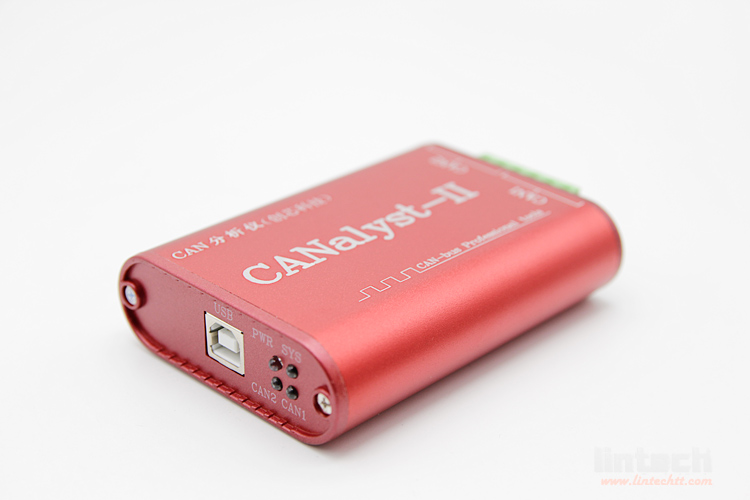

CANalyst II Test example.

Detailed Pros & Cons



✅ High Baud Rates (500k / 1M)



Advantages

  1. Shorter bit time means lower latency and better real-time response — essential for fast closed-loop control (motors, radar, powertrain).
  2. Higher throughput per unit time, so the bus can carry more messages without saturating — ideal when there are many nodes and heavy traffic.
  3. Faster message response supports closed-loop control.

Disadvantages

  1. Sharper signal edges create more EMI radiation, making the network more susceptible to interference and more likely to disturb nearby circuits.
  2. The maximum allowable bus length drops sharply, so nodes must stay close together.
  3. Very strict bus-quality requirements: twisted-pair cabling, shielding, and 120 Ω termination resistors must all be up to spec. Impedance mismatches or loose connectors immediately cause bit errors, dropped frames, and bus faults.
  4. Signal propagation delay matters more at high rates; CAN relies on bit synchronization, and longer distances can corrupt the bit timing.



✅ Low Baud Rates (≤125k)



Advantages

  1. Gentler signal transitions give strong immunity to electromagnetic interference — stable operation even near power electronics and motors.
  2. Supports very long bus runs, ideal for distributed, far-flung devices.
  3. Lower demands on cable quality; ordinary wiring works and fault rates are low — high fault tolerance.
  4. More bit-timing margin, so nodes can tolerate less-precise clock accuracy.



Disadvantages

  1. Longer bit times mean higher latency and weaker real-time performance — unsuitable for high-speed closed-loop control.
  2. Low bandwidth; the bus congests quickly under heavy traffic, and message refresh slows down.
  3. A standard 8-byte CAN message takes noticeably longer to transmit.



Additional Key Points



1. Bit Timing The baud rate is set by the oscillator and the bit-timing configuration. Even two nodes both nominally running at 500 kbps can fail to communicate if their bit-timing parameters differ (different sample points). High baud rates place stricter demands on bit timing and crystal accuracy.

2. CAN FD (Controller Area Network Flexible Data-rate) CAN FD can run the arbitration phase at a low baud rate (e.g., 500 kbps) and then switch the data phase to a high baud rate (2M/4M/8M). This combines bus compatibility with much faster payload transfer, and is widely used in automotive radar and domain controllers.

  • Advantages: Long buses stay reliable while payload throughput improves dramatically.
  • Disadvantages: Requires hardware that supports CAN FD; legacy CAN 2.0 nodes cannot connect directly to an FD segment.

3. Impact on Bus Load With the same number of messages, a higher baud rate means a lower bus-load percentage. Example: 100 messages/second at 1 Mbps keeps bus load very low; at 125 kbps, load can easily exceed 80%, and under high load you’ll see latency jitter.



Quick Selection Guide



  • Automotive, short distance, real-time control: prefer 500 kbps; for in-chassis short-range heavy data, consider 1 Mbps (CAN 2.0) or CAN FD.
  • Construction machinery, long distance, high-interference environments: use 250 kbps / 125 kbps.
  • Multi-kilometer long distances: 10 kbps–50 kbps.
