Passport Reader Function Introduce
Passport reader, document reader, passport reader, passport recognizer, passport forgery detection
This webpage mainly introduces passport reader products. Passport reader has powerful functions, can identify passports and more than 80 kinds of documents from all over the world, supports a variety of reading methods, multispectral imaging, extraction of personal avatars, document authenticity inspection, automatic triggering and classification, barcode QR code recognition, etc. Second-level document reading and high accuracy, supports secondary development, anti-glare interference, system compatibility, strong application, can be integrated into a variety of scenarios, such as hotels, exhibitions, visitor management, banks, civil aviation airports, inspection and quarantine and other industries. In terms of product parameters, the various characteristics of the passport reader APR5300 and QR4000 (I) are introduced in detail, including light source, anti-glare capability, image group, verification standard, card reading function, data transmission, etc. Customer cases, product parameters and service and support are also provided, providing users with comprehensive product information.
Function introduction
Identify passports from countries around the world
Electronic passports, paper passports, etc. from more than 200 countries that support the ICAO DOC 9303 standard
Identify multiple documents
Support reading more than 80 kinds of documents such as domestic and foreign driver’s licenses, visas, permanent residence permits for foreigners, electronic homecoming permits, electronic Taiwan compatriot permits, Hong Kong and Macao ID cards, Hong Kong and Macao residents’ travel permits to the mainland, and Taiwan residents’ travel permits to the mainland
Multiple reading methods
Support three reading methods: pure photo OCR, pure card reading, photo + card reading
Multispectral imaging
Passport reader supports output of visible light, infrared light, ultraviolet light images
Extract profile picture
The passport reader can extract personal avatars and chip avatars from the surface of the document.
Support certificate authenticity check
Support UV light feature check, infrared light feature check, chip data check, OCR data and electronic chip content cross-verification and other authenticity feature checks
Automatic trigger, automatic reading and classification
RFID radio frequency reading chip, supports automatic identification and classification of various documents, automatically reads certificate information and enters the certificate information into the system
Passport reader supports recognition of barcodes, QR codes (including mobile phone QR codes)
Second-level document reading, with high accuracy
The card reading time of the electronic passport is less than 3 seconds, the card reading time of the second-generation certificate is less than 1 second, the certificate recognition accuracy rate is as high as 99.8%, and the communication rate is up to 848 Kbps.
Support secondary development
Provide Windows, Linux, Android system software development kit for secondary development calls; provide VC, VB, C #, Java and other language call routines
Anti-glare interference
Remove the influence of anti-counterfeiting film and reflection to ensure that the color of the certificate is not distorted
System compatibility and strong applicability
It can be integrated into various management application systems and applied to various scenarios such as hotels, travel agencies, visitor management systems, airports, high-speed rail, customs, inspection and epidemic inspection, diplomacy, public security, exhibitions, etc
Product advantage
application scenario
- Inspection and quarantine industry
- Exhibition industry application
- Hotel industry
- Visitor Management Industry
- bank
- Civil aviation airport industry application
Inspection and quarantine industry
Inspection and quarantine service hall in the passenger’s own body and carry food, animals and plants for inspection, need to pass the real-name system after registration, issued an official inspection report, allowing entry and exit, inspection and quarantine traffic counting, manual inspection of document information, registration document information is inefficient, and very easy to produce errors, the application of Wentong technology passport reader, automatic trigger identification, classification of various types of documents, reduce the real-name system registration waiting time, improve inspection and quarantine industry inspection efficiency.
Exhibition industry application
At various important international exhibitions, the organizers require exhibitors to register with a real-name system before they can obtain tickets and enter the exhibition. The Wentong Technology Passport Reader is integrated into the exhibition registration management system to help the exhibition industry complete real-name registration quickly and accurately, reduce waiting time in queues, and improve the experience of exhibitors.
Hotel industry
Identity verification has always been the top priority of hotel security management. The Wentong Technology passport reader is integrated into the hotel management system, travel security management system, and hotel check-in machine. Customers present their documents, and the passport reader automatically classifies and reads various documents at home and abroad. It helps hotels quickly and accurately enter and register customer information, improve check-in efficiency, and at the same time ensure hotel check-in security. “Intelligent” preservation of electronic image data.
Visitor Management Industry
Wentong Technology Passport Reader can be used in high-end residential areas, Internet parks, government buildings, and other scene visitor systems to quickly identify visitor ID cards, driver’s licenses, military certificates, and other documents, making it convenient for domestic and foreign visitors to quickly handle visit registration procedures and strengthen access security management.
Bank
The Wentong technology passport reader is integrated into bank counters, self-service all-in-one machines, mobile end points and other equipment to help banks further expand and extend their various businesses, realize bank counter processing, network self-service processing, door-to-door processing and other diversified business processing methods, improve the overall efficiency and service quality of various businesses, and effectively prevent criminals from using fake passports and other people’s passports to handle credit cards, cut cards after illegal cash, resulting in bank losses in capital and bank financial risk loopholes.

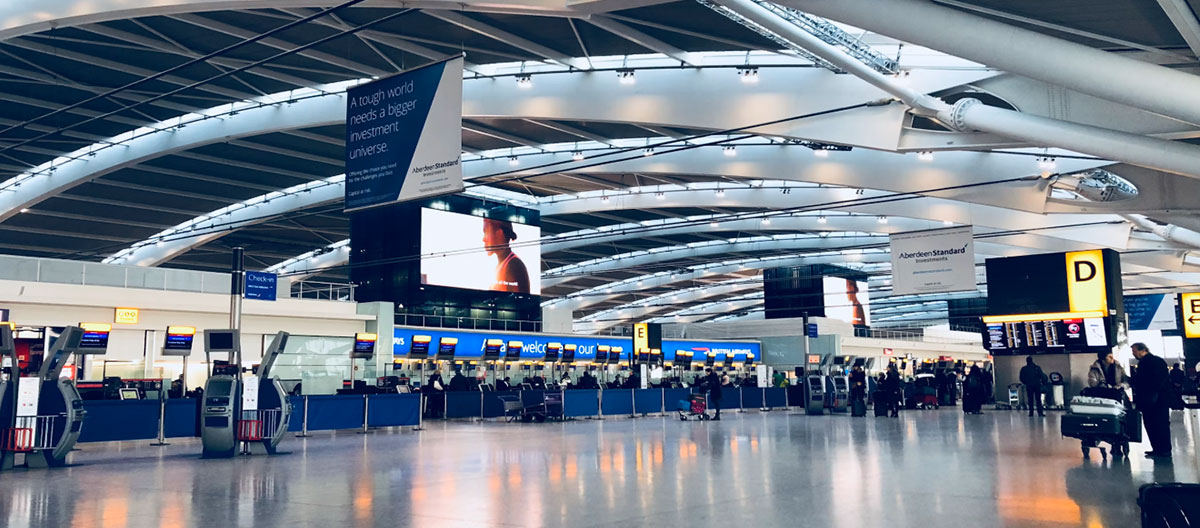

Civil aviation airport industry application

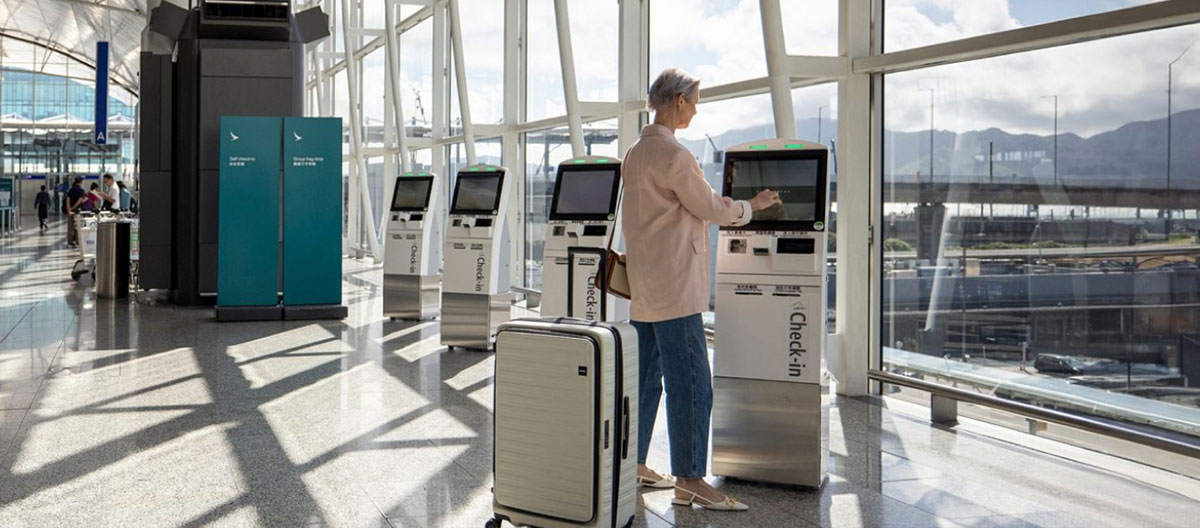

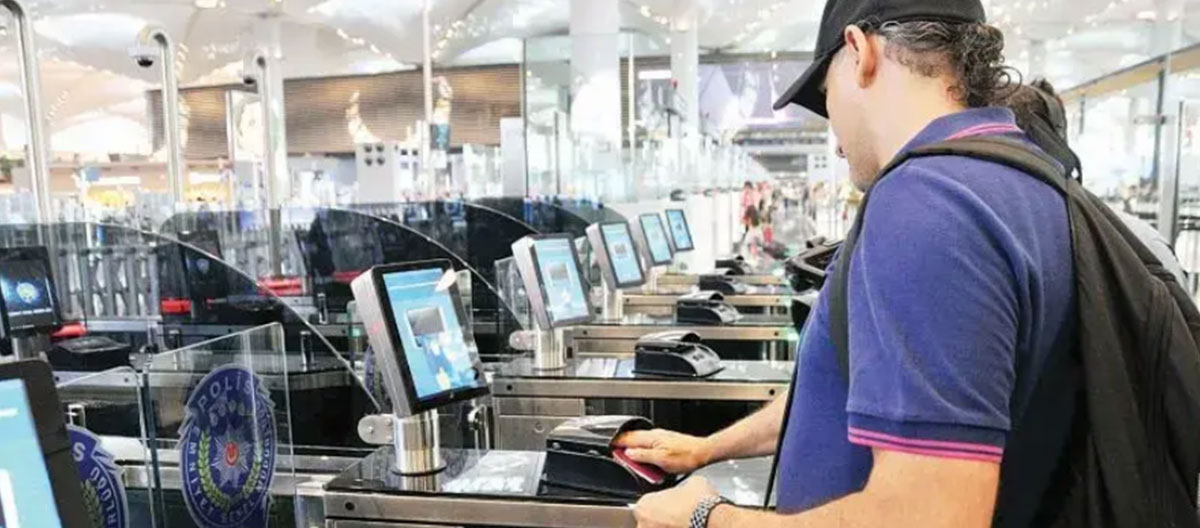

The Wentong Technology passport reader is integrated into the self-service check-in, baggage check-in, and security channel gates at civil airports. After passengers arrive at the airport, they hold valid documents such as ID cards, passports, military ID cards, and homecoming permits, and print their boarding passes on the self-service check-in equipment. After self-printing checked baggage vouchers, passengers present their boarding passes, ID cards, passports, and other documents when entering the security channel. The passport reader quickly reads the documents and completes the security check, which greatly reduces the waiting time in queues and improves the efficiency of traffic.
Customer case
Product parameters
APR5300 Passport reader APR5300
| Second-generation certificate chip reading | Electronic passport chip reading | Auto trigger | Light type | Image type | Supported resolutions |
| √ | √ | √ | Visible light, infrared light, ultraviolet light | Color, grey release, color | 2048×1536、2592×1944 |
View details
| Parameter name | Specific description |
| Light source | Multi-wavelength light source: including visible light, 850nm red light, 365nm red light |
| Anti-glare capability | The color of the warranty certificate will not be lost, and it will also prevent the negative effects of glare and backlight. |
| Video group | Area 127 * 88mm CMOS sensor 500K image (2592 * 1944) resolution 500 DPI |
| Image residue | Supports all versions of certification certificates, 24-bit color gradual change, bright colors, visible light (white light), red light, red light source images can be stored as BMP, PNG or JPEG and other image formats, and the image will not contain any images generated by backlighting; At the same time, the image below the leading edge can be verified and the image can be stored in thumbnail form; |
| Body shape cutting | After cutting the human body and head area, the nonlinear area ratio of the image center The LEDs are slightly smaller. |
| Verification standard （OCR） |
Support ID card, passport, ID card, permanent residence permit for foreign citizens, Hong Kong mail order card, passport and other ID card images and information; support ICAO9303 standard, authentication and other travel documents and information image formats, including table code and other information; support reading one-dimensional format codes, Code 128, Code 39, EAN-13, etc.; support reading two-dimensional format codes, PDF 417, QR, DataMatrix ™, etc.; Handwriting speed is less than 1 second |
| Electronic reading card | Support ICAO9303 standard electronic card reader, reading time is less than 3 seconds Support ISO 14443 Type A/B card type, card reading; support microscope basic access control (BAC); support microscope driver confirmation, support microscope master confirmation, support microscope driver authenticity confirmation |
| Dual identity card | Support bipartisan citizenship certificates with separate reading cards and less than one chapter. |
| Desk reading area | All available ICAO certifications and Chinese certifications can be read without limit 。 |
| Protection class | IP50 |
| Data transfer | Support (excluding) PC/SC, including USB 2.0 and USB 3.0 ports Support USB port development, can be installed and connected to other USB ports |
| Email speed | Maximum support 848Kbps |
| Autofocus | Support authentication automatic sensitivity verification read |
| Automotive Department | System Autonomous Region Authentication Model |
| Flashlight | It includes power point indicators, emergency indicators, fault indicators, and warning indicators. Support the operation of the indicator light. |
| Ostrich | In the squid pot |
| Easy to develop SDK package | Provide secondary boot loader for Windows system; Provide DLL, OCX, WebSocket formats, VC, VB, C #, Java and other examples. |
| Power Supplier | AC 100~240V 50-60Hz 0.8AAdopt external power supply standard, power supply specification: input AC 100~ 240V 50-60Hz 0.8A DC 12V 2A Output DC 12V 2A |
| Humidity | Humidity: 20% to 95% (humidity does not decrease) Temperature: -10 ° C to 50 ° C for operation; -20 ° C to 50 ° C for storage |
| System | Supports Windows ® 2000-SP4, Windows ® XP, Windows ® Vista, Windows ® 7 and Windows ® 8, Windows ® 10 and above and Linux ® systems; |
| Size | Dimensions: 198 * 175 * 138mm; Length: 138cm; Table weight: 1.25kg; FCL weight: 1.75kg |
| Service and support | Provide 365 * 24 hours telephone, email, network technical support; hardness guarantee for one year, fully assembled |
Passport reader QR4000(I)
| Second-generation certificate chip reading | Electronic passport chip reading | Auto trigger | Light type | Image type | Supported resolutions |
| – | √ | √ | Visible light, infrared light, ultraviolet light | Color, grey release, color | 2048×1536、2592×1944 |
View details
| Parameter name | Specific description |
| Light source | Multi-band light source: including visible light, infrared 850nm, ultraviolet 365nm |
| Anti-glare function | Ensure that the color of the certificate is not distorted, and remove the influence of anti-counterfeiting film and reflection |
| Image acquisition | Acquisition area 127 * 88 mm |
| Sensor CMOS 5 million pixel (2592 * 1944) resolution 500 DPI | |
| Image saving | It can take 24-bit clear color photos of the full version of the passport document information page. Images collected under visible light (white light), infrared light and ultraviolet light sources can be saved in various picture formats such as BMP, PNG or JPEG, and the photos will not contain reflective light spots; at the same time, electronic avatar photos can also be saved from documents with chips; |
| Portrait cutting | The cropped image has a complete face and head area, a small proportion of non-photographic areas in the image, and no light spots in the photo. |
| Document Recognition (OCR) | Support image acquisition and information recognition of ID cards, driver’s licenses, passports, Hong Kong and Macao passes, Taiwan compatriot permits, driving permits, foreigners’ permanent residence ID cards, etc.; support image acquisition and information recognition of ICAO9303 standard passports, visas and other travel documents, including machine-readable codes and other layout information; support reading 1D barcodes, Code 128, Code 39, EAN-13, etc. Support reading 2D barcodes, PDF 417, QR, DataMatrix ™, etc.;
The photo recognition speed is less than 1 second |
| Electronic passport reader | Support ICAO9303 standard e-passport card reading, card reading time is less than 3 seconds Support ISO 14443 Type A/B type card reading; support e-passport basic access control (BAC); support e-passport passive authentication, verify the authenticity of document information Support e-passport active authentication, verify the authenticity of the certificate chip |
| Machine-readable area | Can read all ICAO-compliant documents and non-ICAO-standard documents issued by China, and analyze machine-readable code information |
| Protection class | IP50 |
| Data communication | Support (including but not limited to) PC/SC, compatible with USB 2.0 and USB 3.0 interfaces; support USB interface expansion,
Other USB devices can be connected to the device |
| Communication rate | Supports up to 848 Kbps |
| Auto trigger | Support certificate automatic sensing to trigger certificate reading |
| Automatic classification | The system automatically distinguishes the types of documents |
| Indicator light | Including power indicator, ready indicator, error indicator and warning indicator; support indicator working status customization |
| Buzzer | Built-in buzzer |
| Software Development Kit | Provide the software development package of Windows system for secondary development call; Provide in the form of Dll, OCX, WebSocket, provide VC, VB, C #, Java and other language calling routines. Provide the software development package of Linux system; |
| Power supply | Use external standard power adapter, power adapter specifications: input AC 100~ 240V 50-60Hz 0.8A;
Output DC 12V 2A |
| Operating environment | Humidity: 20% to 95% (no condensation at relative humidity); working temperature: -10 ° C to 50 ° C;
-20 ° C to 50 ° C storage |
| Operating System | Compatible with Windows ® 2000-SP4, Windows ® XP, Windows ® Vista, Windows ® 7 and Windows ® 8, Windows ® 10 and Linux ® |
| Physical specification | Appearance size: 198 * 175 * 138mm length, width and height; bare metal weight: 1.25 kg Full packaging weight: 1.75 kg |
| Service and maintenance | Provide 365 * 24 telephone, mail, network online technical support; hardware one-year quality assurance, lifetime maintenance |
