How Does a Card Dispenser Work? Complete Workflow & Operating Process
Introduction

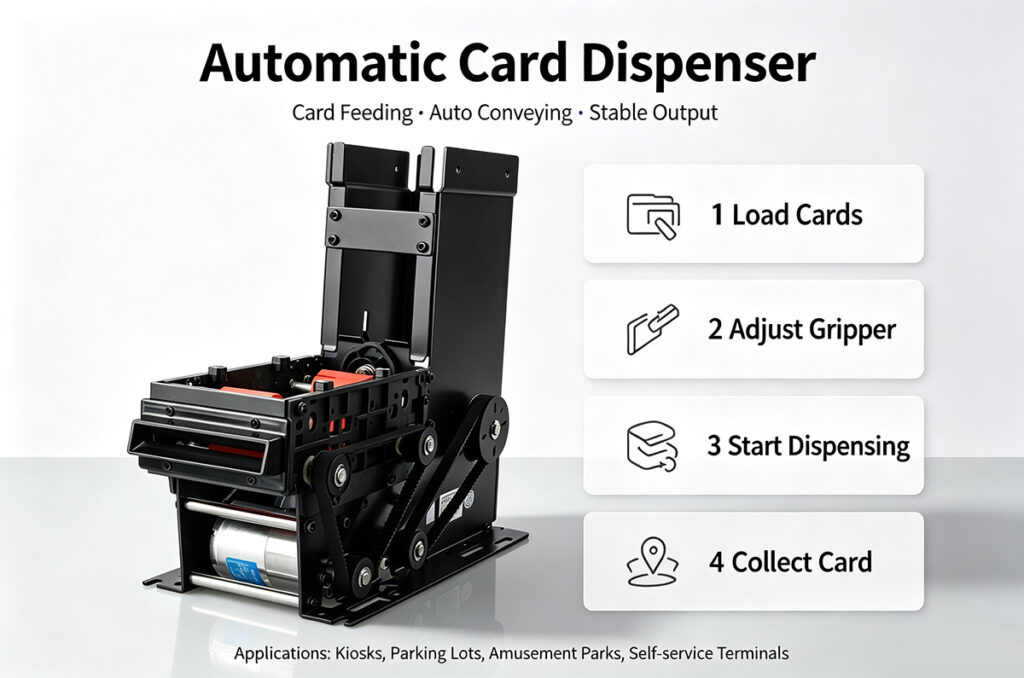

A card dispenser is an essential component in many self-service systems, including hotel check-in kiosks, parking payment terminals, access control systems, ticket vending machines, banking kiosks, and healthcare registration terminals. Its primary function is to automatically dispense, verify, and recover cards with high speed and reliability.
This article explains the complete operating process of a standard card dispenser, from power-on initialization to card dispensing, recovery, and error handling.
1. Power-On Self-Test
When the device is powered on, the card dispenser automatically performs a system self-test to ensure all components are functioning correctly.
The initialization process includes:
- Checking all photoelectric sensors
- Detecting whether the card hopper is in Low Card or Empty status
- Monitoring loop detector signals and external button inputs
- Initializing motors and communication interfaces
- Performing buzzer and LED indicator tests
- Automatically pre-positioning one card at the dispensing location
If the hopper is nearly empty, the dispenser outputs a Low Card signal, activates the buzzer, and flashes the LED indicator. If the hopper is empty, an Empty signal is sent to the host system.
2. Card Pre-Positioning
To improve dispensing speed, the dispenser automatically moves one card from the hopper to a standby position after initialization.
This pre-positioning process allows the machine to respond immediately when a dispensing command is received, reducing waiting time for users.
3. Card Dispensing Process
After receiving a dispensing command from the host system, the dispenser performs the following sequence:
- Transport the pre-positioned card to the reading/writing area.
- If required, perform RFID or IC card read/write operations.
- Verify that the card has been programmed or authenticated successfully.
- Dispense the card to the output slot.
- Wait for the user to collect the card.
This workflow ensures both high dispensing speed and reliable card validation.
4. Card Collection Monitoring
The dispenser continuously monitors the card outlet using optical sensors.
There are two possible outcomes:
Card Collected
If the user removes the card within the preset timeout period, the dispensing cycle is completed successfully.
Card Not Collected
If the card remains in the output slot beyond the timeout period, the dispenser automatically retracts and recovers the card to prevent unauthorized use.
Additionally, if the host system sends a recovery command while waiting for user collection, the dispenser immediately retrieves the card without waiting for the timeout.
5. Automatic Error Recovery
During card loading, dispensing, or recovery, problems such as the following may occur:
- Bent cards
- Dirty cards
- Double feeding
- Card jams
- Incorrect card positioning
To resolve these issues automatically, the dispenser performs a correction procedure by repeatedly moving the card forward and backward.
Typically, the mechanism attempts up to five recovery cycles.
If the problem cannot be resolved automatically, the dispenser:
- Stops all mechanical operations
- Sends an error signal to the host controller
- Activates the buzzer
- Flashes the LED status indicator
- Waits for operator intervention or the next command
6. Card Hopper Status Monitoring
The dispenser continuously monitors the card supply and reports its status.
| Hopper Status | Output Signal | Buzzer | LED |
|---|---|---|---|
| Normal | Ready | Off | Solid |
| Low Card | Low Card | Alarm | Flashing |
| Empty | Empty | Optional | Flashing |
The Low Card warning indicates that only a small number of cards remain and replenishment is recommended.
The Empty status indicates that no cards are available for dispensing.
Conclusion
A modern card dispenser combines intelligent sensing, automatic positioning, reliable card verification, and fault recovery to provide stable and efficient operation in self-service environments. Features such as automatic self-test, card pre-positioning, timeout recovery, and jam detection significantly improve system reliability while reducing maintenance costs.
Whether integrated into parking systems, hotel kiosks, access control terminals, or banking equipment, a high-quality card dispenser ensures fast, secure, and dependable card issuance.
